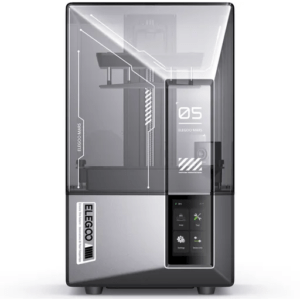

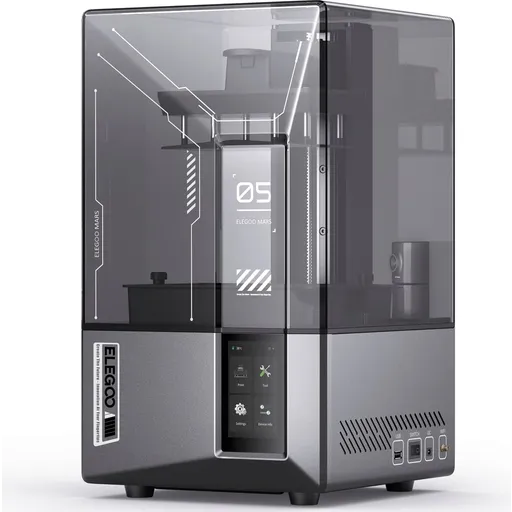

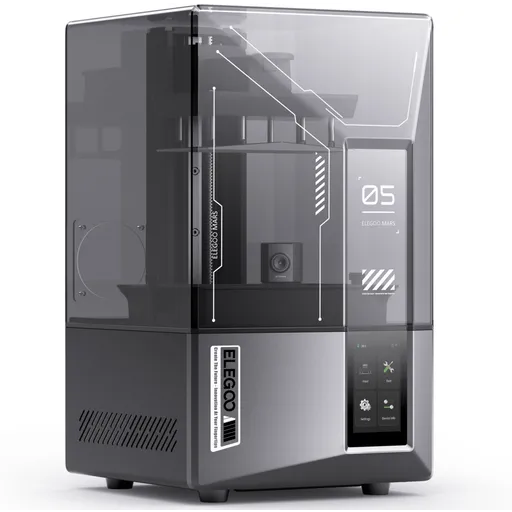

Pre-order now!ELEGOO Mars 5 Ultra 9K

ELEGOO Mars 5 Ultra 9K is a precise 3D printer working in mSLA (LCD)  technology with a 7" 9K resolution screen. The printer comes with ultra-fast printing possibilities, auto-leveling, resin exposure time calibration, and an AI Camera.

• ultra-high resolution 9K - resolution of 18µm allows the printing of highly detailed models
• 7” Mono LCD screen  - great build volume for larger prints
• the world's leading high-speed 3D printer - no need for fast resin or ACF release film. With the Tilt Release Technology, it is easy to achieve ultrafast printing
• tilt release innovation -  boasting a blazing fast speed of up to 150mm/h. The tilt release technology enables swift model peeling from the release film, ensuring lightning-fast printing without compromising on detail, accuracy, or reliability. Seamlessly switch between the fast and slow print modes, unlocking unmatched flexibility and efficiency
• self -check & automatic leveling - print out of the box without manual leveling, one-click self-check and one-click automatic leveling
• AI camera - empty build plate detection and warping detection. Real-time monitoring and time-lapse photography to view the printing process in real-time and record the whole printing process
• smart mechanical sensor - residue detection to prevent damage to the LCD screen. Plus, timely alarms for resin shortages and leveling failures minimize waste and ensure uninterrupted efficiency. Stay worry-free and enjoy high-quality prints every time
• advanced overheat protection - enjoy carefree printing with advanced high-temperature protection. When the LEC temperature exceeds 80C, the intelligent system triggers an alarm and halts printing automatically, ensuring enhanced safety and an extended lifespan
• power-loss resume printing
• real-time monitoring and time-lapse photography
• user-friendly design - quick-release design, replaceable lock screws, resin clog-free, dual pour spouts resin tanks, and reliable drip tray
• ideal for general prototyping - for printing models, prototypes, and education purposes

Technical Specification

• Product model: Mars 5 Ultra 9K
• LCD: 7-inch 9K Mono LCD
• Slicer Software: ChituBox
• Technology: mSLA
• Layer Thickness: 0.01-0.2mm
• Printing Speed: up to 150mm/h
• XY Resolution: 8520*4320 (18microns)
• Z Axis Accuracy: 0.02mm
• Build Volume: 153.36mm(L)*77.76mm(W)*165mm(H)
• Light Source: COB Light Source (405nm)
• Connectivity: USB, WiFi
• Weight: 8.8kg
• Operation: 4 Inch Touch Screen
• Power Requirements: 100-240V 50/60 Hz 24V 3A
• Printer Dimensions: 260mm(L) x 268mm(W) x 451.5mm(H)

Warranty

• Please visit Terms and Conditions page
• If you have any questions do not hesitate to contact us
