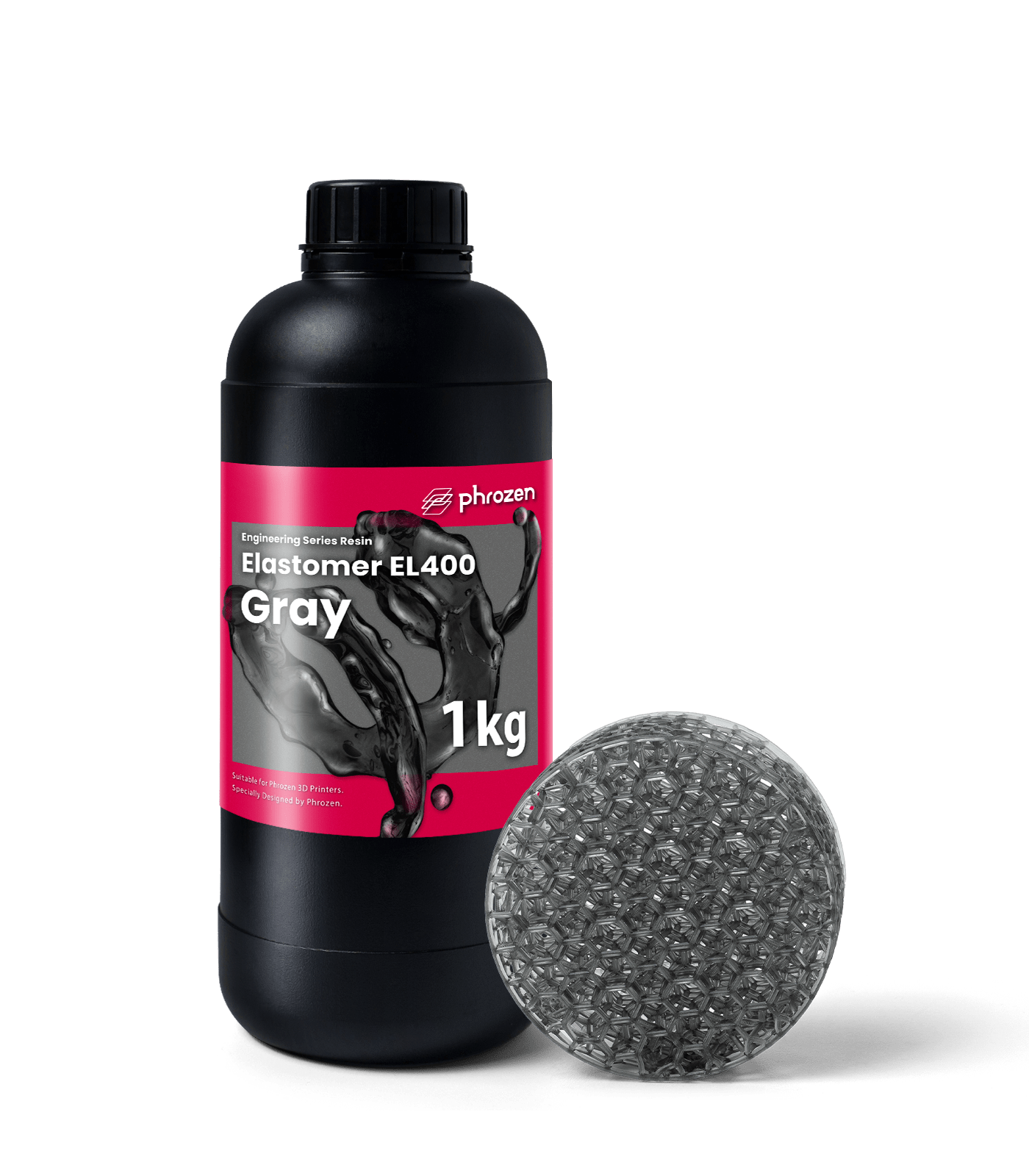

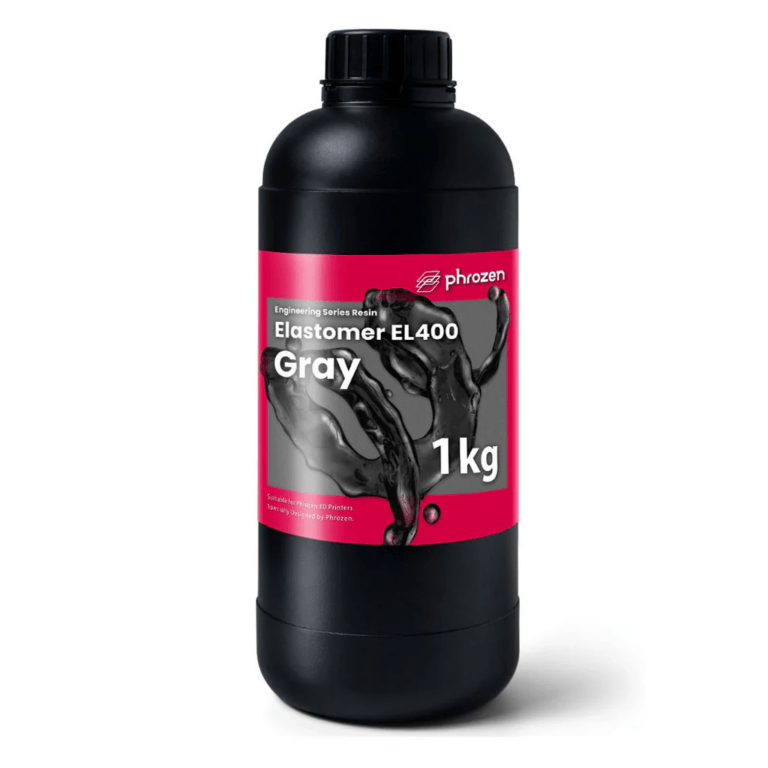

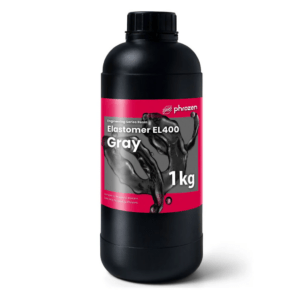

Available soon!Phrozen Resin EL400 – Grey (1KG)

Phrozen Resin EL400 is an elastomer that is flexible such as rubber-like, highly elastic, and tear-resistant for printing elastomer components and changing the standard way of manufacturing.

• medium hardness with high elasticity - 70-75A Shore hardness and 291% elongation. The material offers the optimal blend of elasticity and toughness for printing production-grade elastomer prototypes
• tera-resistant - elastomeric prototypes printed with EL400 can endure over 60000 cycles without tearing apart. Test your prototype performance in real-world scenarios since the initial design stage

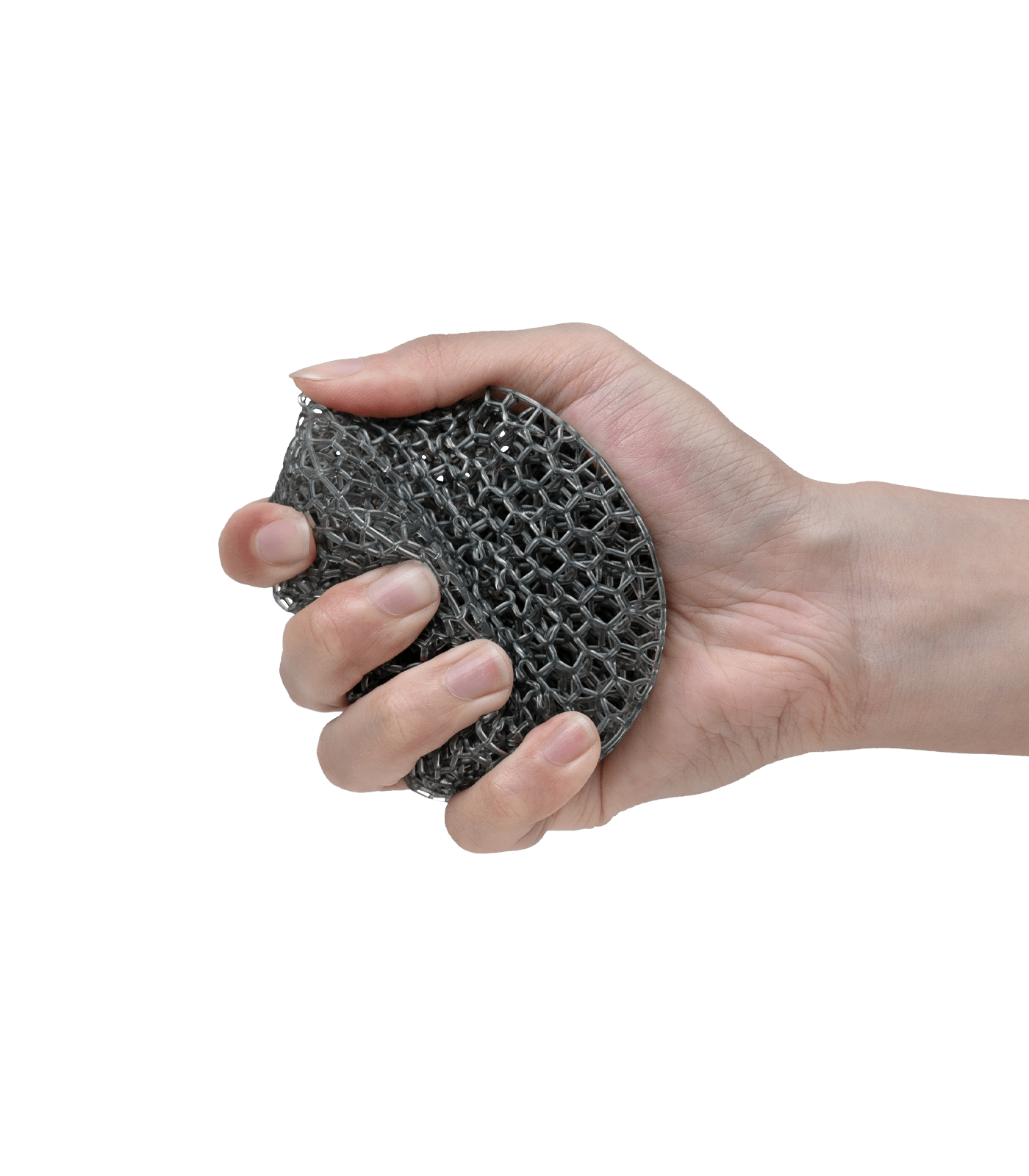

• great rebound resilience - comes with higher rebound resilience compared to most resins in the market. Each printed elastomer will effectively return to its original shape after initiated deformation

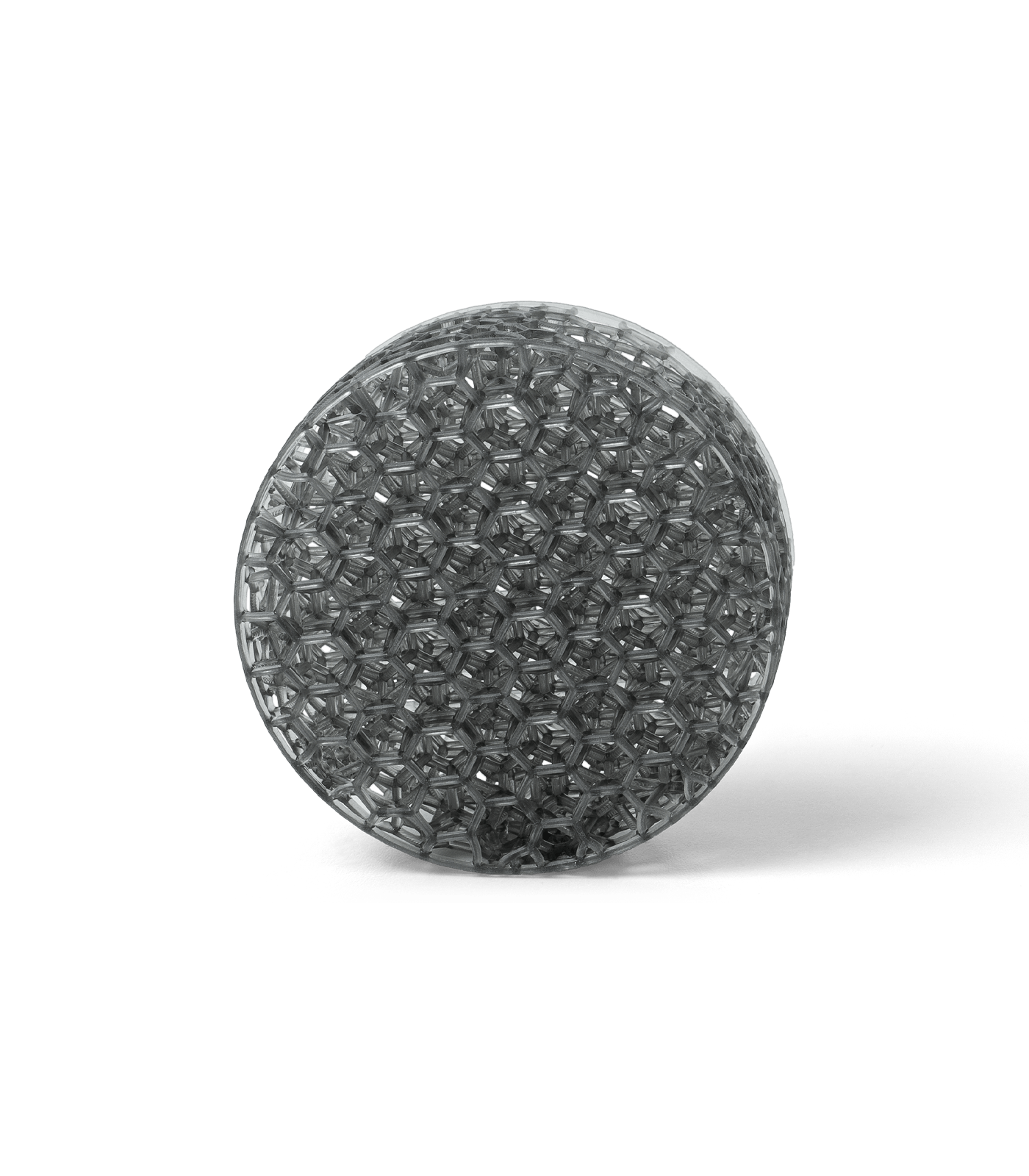

• ideal for printing elastomer components - lattice structures used in midsoles, saddles, cushioning, rubber-like prototypes: grips, seals, and gaskets

Technical Specification

• Volume: 1kg
• Viscosity: 2300-3000 mPas
• Density: 1.04 g/cm3
• Surface Hardness: 70-75 Shore A
• Tensile Stress at Break: 6.3 MPa
• EAB: 391%
• Tear Strength: 22KN/m
• Ross Flexing Fatigue > 60000 cycles
• Bayshore Rebound Resilience: 40%

• Make sure to store the resin in dark and room temperature
• Always wear protective gloves during working with resin
• For more information please check the "Downloads" section
